Description

The PS18000 Ku-Band Phase Shifter from DS Instruments provides handheld stand-alone and remote-controlled phase shifting from 0 to 355 degrees in 5.6-degree increments. This compact USB device features a graphic display and audio feedback. Simple to use and integrate into automated test environments, the PS18000 is extremely attractive for many satellite-link test applications.

 Device Specifications:

• Frequency Range: 8000 – 18000 MHz
• Angle Range: 0 – 355 degrees
• Max Input Power (CW): +29dBm

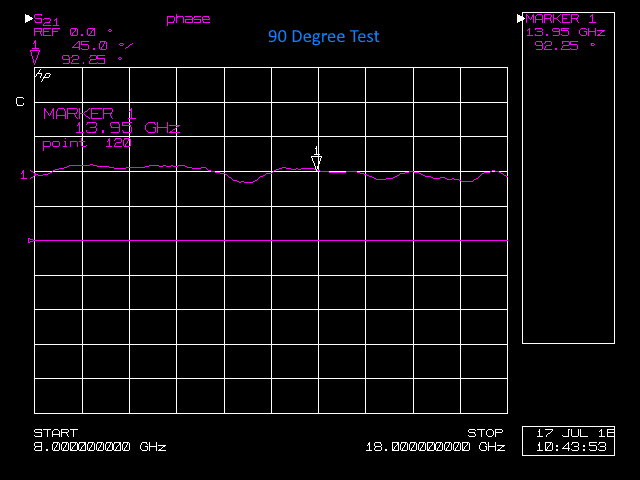

• Phase Resolution: 5.625 degrees

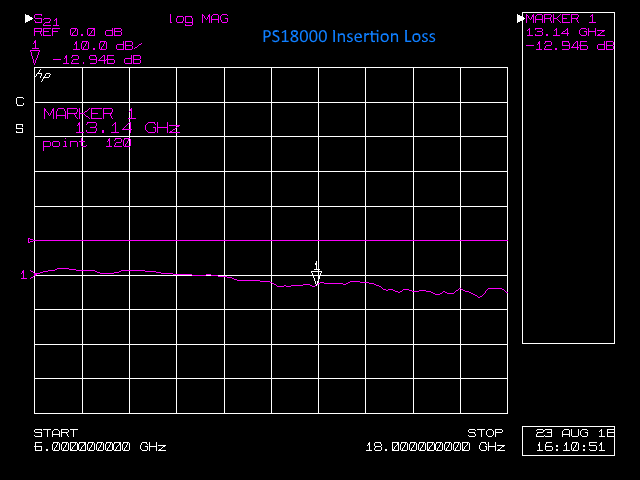

• Insertion Loss: 10dB typical
• Return Loss: 9dB typical
• Input P1dB: 25dBm
• Input IP3: 40dBm
• Bi-directional design

PS18000 Digital Phase Shifter Features:

• Ultra compact powder-coated aluminum case
• Audio feedback
• Simple automated remote control interface
• Micro-USB powered
• Free PC control application
• Micro-USB powered and controlled
• Front control buttons and OLED display
• Premium gold 26GHz SMA ports
• High reliability
• Optional Ethernet

Typical RF Applications:

• Antenna systems
• Phased array research and development
• Beam forming projects
• Electronic warfare and defense
• Satcom systems





Phase Shift Control Application:

Technical Information / Datasheet:
